MOTORHOME MODIFICATION - Replacing Brake Calipers on our Safari Serengeti

It's been a long, long winter of no camping or motorhome repairs or modification posts. Finally I have something to write about!

Yep, it is time to do some of that maintenance that's necessary when you have a rig that is 25 years old. Or really, any RV for that matter.

Steve is very meticulous about keeping things up on our motorhome. Last summer, he had replaced both of the rear brake calipers and brake lines. On our very last outing last fall, the front caliper had been hanging up on the passenger side. We knew that we needed to give the front ones some attention as well.

Any time he does any grubby motorhome repair projects, he puts on his overalls and assembles all of his tools before he begins. I am the main gopher right alongside of him, giving him tools or holding pieces or helping with whatever he needs.

I usually don't need coveralls, but I do get dirty sometimes. I'm also there with the first aid kit in case of a boo-boo, or with the cell phone in case we have to call for parts. On this project, we had to do both!



Earlier in the week, Steve had pre-ordered the calipers from the local Carquest dealer. Generally, they ship reconditioned calipers. But this time the clerk told him they happened to be replaced with new ones, even though the box says remanufactured. Maybe people aren't sending in as many to be remanufactured anymore? Anyhow, we did not have to pay an additional $35 core charge per caliper, because they trust Steve to return the old ones once we are done doing the replacements.


The price for the parts came out to just under $200. That also included two tubes of the special lube product that's used for brake calipers.




Here is the part number for anybody that needs it for the 1996 Safari Serengeti with the Magnum chassis. Our motorhome has the BFGoodrich Velvetride suspension made with Torsilastic wedges. All four wheels use the identical same caliper, whether it's left side, right side, front or rear.



The first step is to remove the really fancy chrome trim rings off of the tire rims. Then Steve gets out his handy dandy little tool. It's called a "Nut Buddy"!  Actually it is called a Stark Nut Torsion Multiplier Tool.


If you have never seen a Nut Buddy work, it is really amazing. It is a way to remove the highly torqued lug nuts on our motorhome. Here, last time I made a video of how it operates:



We are very fortunate to have a long enough level driveway to do the work on this right at our home. The weather was warm and we were able to start this project without any snow on the ground or frost underneath the motorhome, like earlier in the month.



Various neighbors have passed by and asked us what's wrong? What is broken? Are you getting ready for the season? Because it's not too often you see us sitting here with the motorhome up on jacks!



Steve is extremely safety conscious when it comes to putting the motorhome up in the air. Especially when he is the guy underneath it! After he lifts it up securely with the built-in center hydraulic jack, he puts two other jack stands supporting the frame behind the wheels as well as two huge stout pieces of tree trunk up in the front. That gives him five points of contact on the front of the motor home.

At the rear he has the four wheels chocked, and the emergency brake is on the four wheels in the back so that is four more additional secure points of contact. Being on level ground really helps too.



The Nut Buddy did its job easily, and Steve was able to remove the wheel and rim from the hub. In reverse, when he goes to put them back on, he will tighten them up as tight as he can. Our torque wrench only goes to about 250 lbs. Then he will make an appointment with the local truck repair place a mile away and have them torqued to spec before we go anywhere.



And here is the rusty crusty caliper! This one had been hanging up when we were driving home the last time we used the motorhome. Steve said it had an icky burned odor to it as he took it off.



And look at this beautiful shiny brand new caliper! Fresh out of the box. All shiny silvery clean and neat.


In no time at all Steve had the new caliper into place and secured back with the keepers, the bolts and the retaining wire go on next.



That was enough work for the day!!!  He put the tire back on and snugged up the lug nuts as tight as he could go.

Time to take a little break and relax. Neither of us are really back up to snuff yet after our 9 days of illness. So we work a little at a time and take a break. I am by his side, running for tools as he needs them, fetching things so he doesn't have to crawl out and back in again over and over. Plus, I bring him glasses of water and make him hydrate.



Today it was time to work on the driver's side. The wheel came off easily and he was able to access another rusty old icky cruddy caliper.



Rut Roh! While taking off the rusted up old caliper, one of the little metal devices called a keeper, the very little hook edge of it broke off! Isn't it always like that? The tiniest little piece can mess everything up.

Fortunately, Steve is able to do a little bit of tack welding and could put it back into place.  What a guy!



It was kind of hard to hold the one piece while he lined it up with the other piece. That's where my helpful hand comes into play. I held it up level and even, holding it where he needed to join the two pieces, which one was in the clamp of the vice.



I tried to not look at what he was doing and look the other way as he heated the metal with the torch and sparks were flying. Soon he had enough tack welding on it to hold it together.


Next he had to grind it off evenly so the lump of tack weld would not interfere with where it needed to slide into hold the caliper. This piece doesn't take any stress or strain. It's mainly just a guide piece that holds the ridged edge of the caliper into place against the caliper bracket.



Look at that! My hero! For the slight delay of one hour, he was able to repair the piece that was broken. That was a lot easier than trying to locate a new part and have something shipped--- which might take a day - or a week - or a month - who knows??



Now he could finally mount the caliper into place on the bracket. First, he liberally smeared the entire top area with the special caliper brake lube product that he bought with the calipers.



Then he smeared the entire lower part of the bracket. This is where that repaired keeper piece would go. Lubing it up nicely make sure that everything would slide in and work perfectly once it was bolted into place.



With a few little light taps of the hammer, the metal wedge called the keeper is now holding the bottom lip of the caliper against the bracket. Yay!



SCRRITCH  SCCIRTCH   SCCRRIITCH sounds of the ratchet as he tightened up the bolts. I love the sound of a ratchet. I remember as a kid, we used to take Dad's rachets and sockets out of the garage and twirl them in a circle, enjoying the ratcheting sound of tool. I guess that's why we all grew up to be pretty mechanically inclined?



Tada! Second caliper is now done!



With every job, Steve has to add a little bit of his own personal "lube" to the process. A little DNA don't hurt the brakes any, does it? That is why I am handy nearby with the band aids.

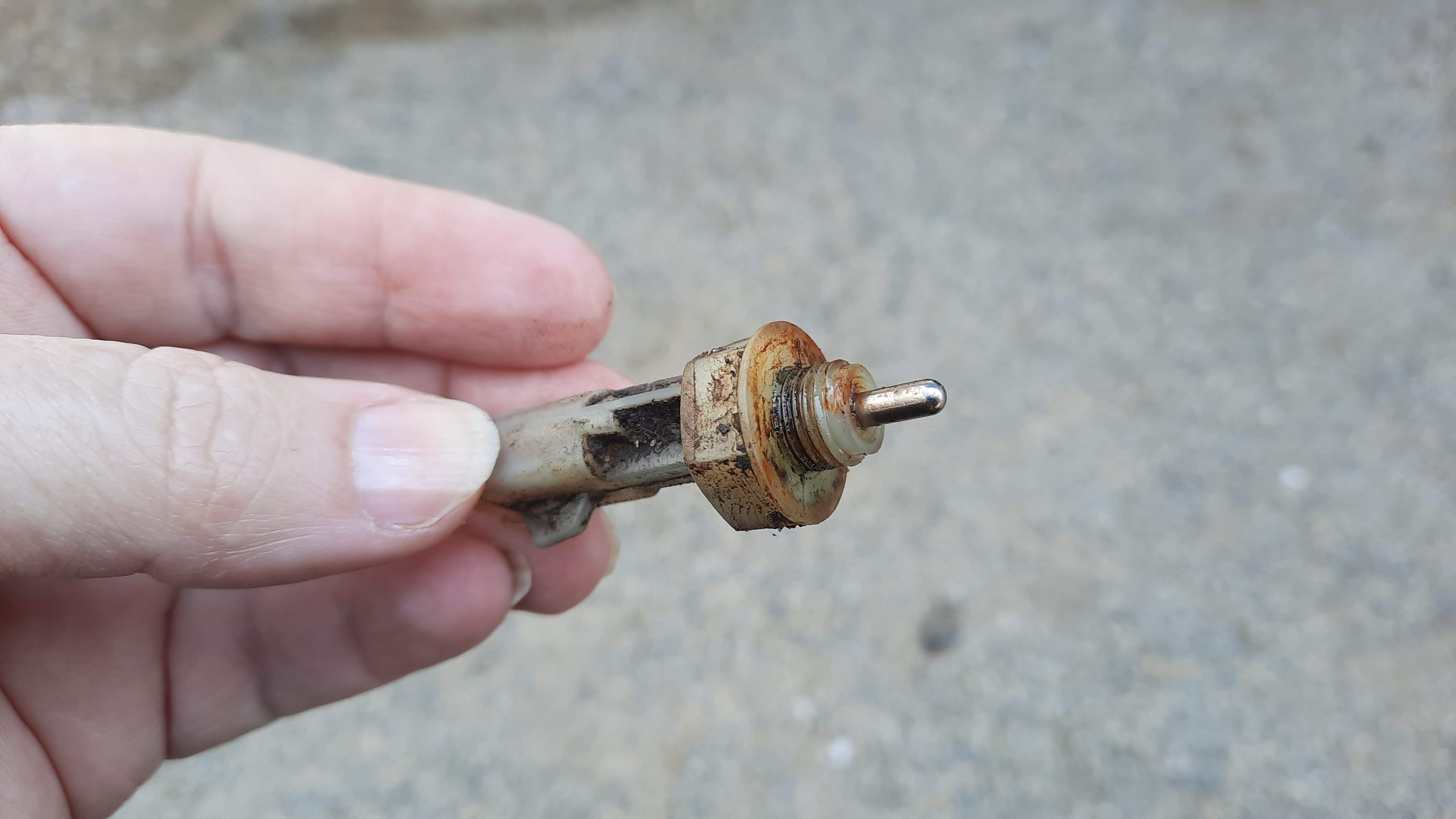

Now we have one other detour to our repair process. Steve had noticed a while back a few little drips of brake fluid which might possibly have been leaking from a little plastic piece on the master cylinder called a low pressure switch. We had replaced this piece once before,  way back in 2008. Maybe it was time to replace it again?

Well, certainly the best time to replace it is when you have the whole wheel off so you can get in there and remove the old one. We matched it up to the paperwork in our records to get the part number. (I keep good records of all of our repairs).  We called the truck parts place to get another one. Luckily they had it in stock! The price has more than doubled from 2008 to 2021. But it wasn't too bad. It went from $8 to $21. Small price to pay for Peace of Mind.



Might as well replace it now before he gets the tire back on. Well, apparently that was enough work today. Again, we are only doing a little bit each day because we aren't feeling the best yet. So tomorrow we will take care of bleeding the brakes and making sure that there is no leak after the new fluid is installed into the system.

All good repair jobs take at least THREE trips for parts. The first trip was for the actual calipers and lube. Then Steve needed a second trip to go get an extra piece of brake line. Then the third trip was now to go and get this little low pressure switch.

Once that is all done, he will make an appointment with Nick over at Oconto Truck Power Center and get the lug nuts torqued back up to spec. Then we will be good to go and get out camping!

~~~~~~
