He removed the braces between all three drawers. It was pretty easy with a hint from fellow Safari owner Wille whom also removed his drawers. Behind each cross piece it was held into place with two screws so they were pretty easy to remove and pop out of the way along with the drawer slides.
Next, Steve turned off the propane at the tank and totally drained out the propane line by running the burners until it burned off all the existing fumes.
He carefully untethered the cooktop from the copper propane line and also unplugged it from the 120v outlet for the electric igniters. From underneath, he removed two brackets and was able to lift the cooktop right out. We are saving it for a fellow Safari owner who would like to get it after his vacation is over. So it can stow away in the garage for now.
We tossed around the idea of the bottom drawer---- whether we should leave it as a big one, or use a suggestion by fellow Safari owner Wille to substitute two of the narrower drawers in it's place. We decided we could change that later if we want, but we will keep the one big drawer for now. Remember, I said that's for dog food and my extra wine bottle storage!
Steve suggested we put up some type of a barricade to help keep the sawn dust particles from spreading all over the motorhome. Fortunately, I had these wonderful fabric pieces that are made for draping around a banquet table for craft shows. The edges of the pieces are already stitched with strips of velcro --- we were able to easily stick them up to the carpeted ceiling in the motorhome. It made him the perfect dust capture enclosure. Up above he had the Fantastic Fan to help suck up the heat and the dust.
Donning our face masks and safety goggles, he went to work on carefully drilling the two pilot holes in the two corners. For this he used a Fostner bit on the drill. It easily drills out a larger hole without putting as much stress on the surrounding material as a normal drill bit does. It's also easier to control and more exact.
I held the end of the shop vac hose right near where he was drilling to help take away any of the excess material as the Fostner bit pulled it up out of the hole.

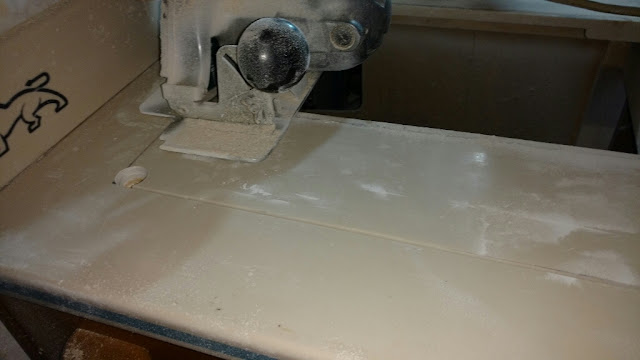

Once each corner was drilled, now it was time to get out the skil saw. A suggestion by fellow Safari owner Brian Harmon, who is also a Corian counter installer, was to get a special 60 tooth blade specifically for laminate and formica as well as Corian. Starting any technical precision job with a brand new blade is a good idea.
He very carefully lined up his skil saw and worked slowly as the blade slid through the Corian material. The instructions said do not push it too fast or you will smell a burning odor. Slow and easy took care of it.
Next he made the two crosswise cuts on the back section. There is an extra space that remains from the cut out from the old cooktop. We are covering that with a piece of steel painted to match the oven. I want it to cover that space so things won't fall down behind the oven or into the drawer below.
Am I ever glad we put up the little fabric dust catching booth. That stuff sure made a mess. It's like a fine powder all over the place.
Now Steve had to make the two precise cuts for the very corner edges of the stove where it sets against the front of the counter. He carefully measured three times and then cut once. Because if you cut off too much, you can never put it back on again!!!
Now it was time to remove that last cross piece of wood. He left it in place to help support the countertop material during cutting.
When we removed the old cooktop there was a special heat tape stuck around the opening. The YouTube we watched suggested that we use this type of tape when installing the stove. Fortunately this tape was the exact same size to fit in the new opening. Recycle! Reuse! Repurpose!
While Steve went to the dentist (ouch a $1,300 crown~) I took down all of the fabric draping and started vacuuming and cleaning and wiping everything up. Boy oh boy what a mess it made. I am so glad we hung that fabric around, otherwise I would be cleaning dust from the entire motorhome for weeks.
Once Steve got back from the dentist, he felt fine. So we could keep on going. Okay, here is the time we were waiting for. This is the dry fitting stage. It fits like a glove! Yay Steveio!!!
Our next step was to reconnect the propane line. Steve got the proper fittings all arranged and hooked it up carefully. We tested for leaks with a bubble solution (kids blow bubbles work great!) Good to go.
YAY!!!
WE GOT FLAMAGE!
Not too bad for a $10 used stove
a can of $4 hi heat paint
and a $30 saw blade!
We had one more thing to address, and that was this gap on the back side after removing the old 2 burner cooktop. It was not too noticeable, but I didn't want anything falling down behind there.
Steve got a piece of steel and painted it to match.
He attached it with some Power Grab adhesive.
Looks like part of the stove!
I think it looks pretty danged good....
but... ONE MORE TEST
Yes!!!
My most favorite roaster pan from my friend Lisa
fits in the oven perfectly with the lid on!
I have not been able to use this roaster in the motorhome until now.
I have only been using it outside on the campfire.
I ordered an additional oven rack,
so I can do two pizzas
or two trays of cookies
or two pans of muffins etc.
It should be here by Wednesday.
I kinda think this looks like it belongs there all the while.....
Great job, Steveio... you are my hero!
~~~~~~~~~~
