Pac Brake Repair:
THIS REPAIR AND REPLACEMENT WAS DONE IN 2012, SIX YEARS AGO....
We noticed our "pac brake" was not functioning.  It is also called an "exhaust brake".  Steve crawled under the bed to make a diagnosis.

For those who don't know what this part is.... it goes on the exhaust pipe by the engine and helps as an extra "brake" by shutting down that inside flapper dealie and retards the pressure to make the engine work as a brake.... to slow down the whole motorhome instead of just relying on the brakes pads on each wheel.

Our diesel motorhome has the engine in the back, underneath our king sized bed.  We lift up the heavy bed together.  He props up the bed mattress and deck with a heavy pole and can crawl right into the engine compartment to work on it!



His first thought was the the Humprey valve.  This is the Humphrey Valve. He got a rebuild kit and decided to operate on that as an easy fix. All that he needed to do was change out the little inside rubber diaphragm and the rubber O-ring.  That was the easy part.





Okay... that was done and we took it for a test drive.  The Pac Brake would still not operate correctly. It moves the piston, but not the butterfly valve.

Upon examination, it was the interior butterfly would not turn and close inside the exhaust pipe.  It was rusted (frozen) shut tight! It gets heated so hot from the exhaust that over time it has swelled up, warped out of round, and stuck.  Fortunately, it was stuck in the OPEN position and not the CLOSED position.  Whew!

Now we needed some serious pounding with a hammer.... on the lever that controls the butterfly inside the pac brake cylindrical tube.  Many whacks later, it still didn't knock it loose!


Now  he figured he needs to remove the entire pac brake to work on it out on the work bench.  So he needed to loosen the two flange clamps and get that entire pac brake outta the engine area so he could work on knocking the butterfly inside loose.

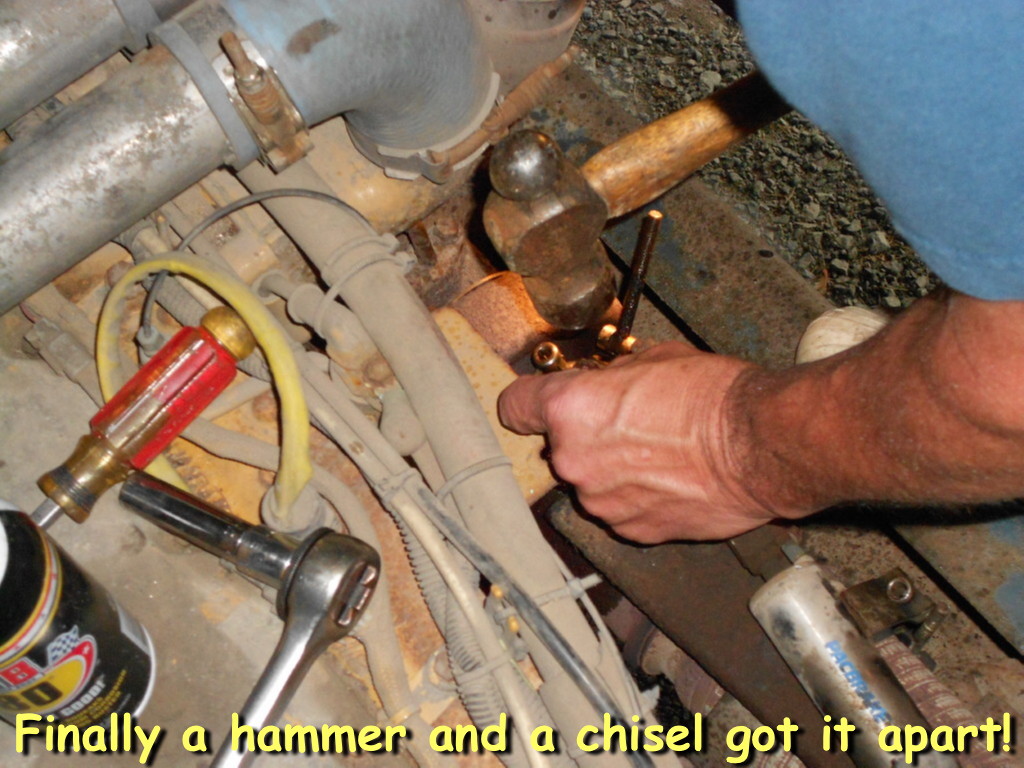

Sound easy huh?   Well.. of course it's NOT.... once the two clamps were loosened, the entire pac brake housing was rusted in tight!!!!   He had to use a chisel and a big hammer.... after many whacks (Steve estimates about 20)  it finally came loose!!!!!!



Next hurdle, the butterfly inside the pipe was of course stuck in the open position, which the two fins of the butterfly intruded into the exhaust pipe and turbo unit on each side of the pac brake that he was trying to remove.  It was a very difficult job to try to flex back the exhaust tube (which doesn't flex much) to give enough clearance to slide out the pac brake with the stuck butterfly valve.  Arggghhhhhhh

Whew!  There... it is OUT!!!!


See how that center piece (the butterfly) is stuck in the open position?    We stuffed a rag in the opening for the turbo and taped off the end of the air line to the Humphrey valve too.



Yup, this is what is "broke"


A pac brake is not a cheap item to replace...  it runs in the $700-1,000 range.   That is why we are going to try to loosen the stuck butterfly ourselves. The piston part is not the problem.   The piston part seems to function correctly, and it the part that gets lubed with special pac brake lube.   But the rusted up butterfly lever IS the problem and that takes such high heat when the engine is running, that lube does not work on it.




Steve hammered on it out on the bench,
then in the vise,
then with a bigger hammer...
nada..
it was NOT going to move!

So he took it to work, and on his lunch break he used a rosebud torch tip with high heat map gas torch...   and lots of flame and heat to finally break it loose!  And it worked!!!!!!!!!!!!!!!!

Yes, he put the pac brake back in, and it went in very easily now that the butterfly could be shifted to the closed position.  Dropped it right into place, hooked it all up, clamped down the clamps and then added the brand specific Pac Brake Lube to the 5 points of lubrication indicated on the bottle.   There... done!



We then took it for a test drive and it worked perfectly!   Steve even had me drive for a bit and let him look with the bed lifted up, so he could see it actually working.  What a reward for a job well done!


FAST FORWARD A YEAR......


Pac Brake Replacement:
Steve decided the leaking piston on the pac brake on our motorhome was not holding after his little repair job.  It was working intermittantly, and a few times we had to pull over and lift the bed to "unstick" the pac brake.  Not good, especially on an interstate!

So he searched the internet and found a new one to replace it with.


Here are some pics for you RV Cat Engine guys to oogle at .....




I am sure the replacement will go quickly, because we have had the other one out twice.  He thinks the actual flange is hanging up because the round chamber is warped from the heat... and also the piston device is not working properly as it was leaking and he did an epoxy glue job on that might not be holding.  We know on our last trip, it was working erratically.  Instead of fighting with it, he decided we should just invest in a new one.




Here is the info and cost:

PacBrake PRXB Exhaust Brake GMC C6500/7500/8500 Cat 3116/E/3126
SKU:PB-GMC-C40105
Weight:35.00
Price: $738.25

I am soooo glad Steve is able to do these changes himself.  It would probably have cost upwards of $1,000-1,500 to get it done.

~~~~~~~
